Levels:	4
Tyres arrangement:	laced, in columns
Length [mm]	2383
Width [mm]	1400
Height [mm]	2200

catalogue card

full catalogue (PDF ~9MB)

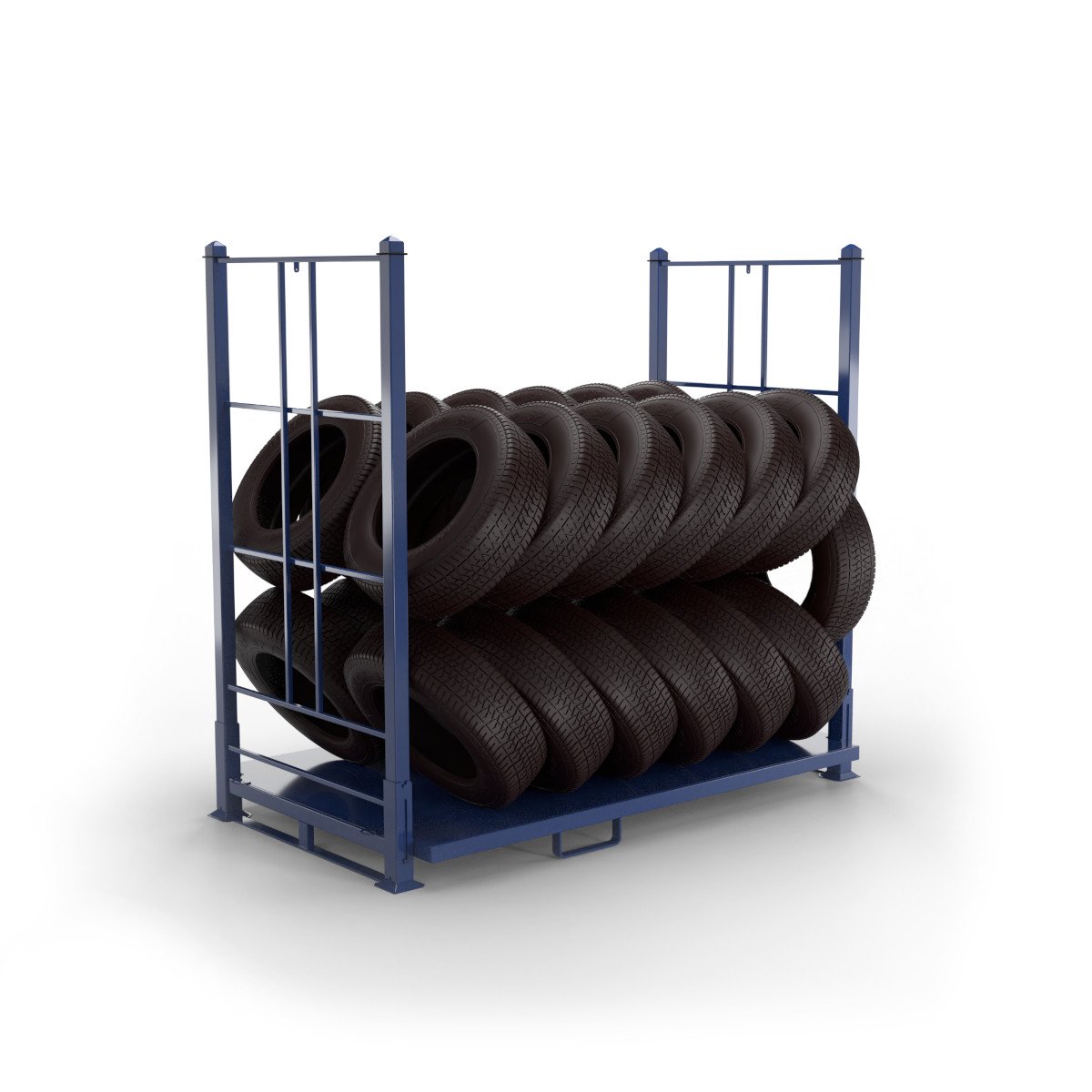

AR01 WIDE

Wide rack for large SUV tires and packages

It is a foldable steel pallet with a load capacity of 1000 kg . It can be stacked with a forklift into a 4 -level rack with a height of nearly 9 m .

Application:

• Tire Storage and Transportation – This rack is specifically designed to store large SUV tires stacked in a chevron pattern. The platform is 1.4 m wide and 2 m usable height.

• Storage and transport of products in various packaging – AR01 WIDE is used for storing various goods in cardboard boxes, in wooden crates, in bags and in plastic or metal containers. One AR01 WIDE fits two euro pallets with a high load.

Options and variants:

P01 – it is a steel shelf with a load capacity of 500 kg. Allows you to divide the internal space of the palette. You can mount 1 or 2 shelves on the AR01 WIDE pallet.

Bottom – instead of a standard sheet, you can choose a steel mesh or a sheet with holes.

Powder coating to any RAL color.

The “C” in the names of our products means matching the dimensions to the sea container. These products are about 10cm shorter than the standard. Functional parameters and selection of options remain unchanged.
