Max load:


Length [mm]

Width [mm]

Height [mm]


Pallet for gas cylinders.

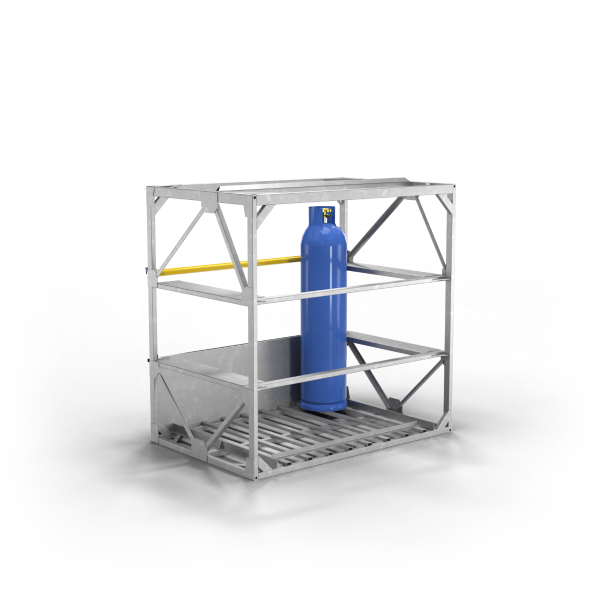

ARG17 is a steel basket for storing and transporting 16 cylinders with 50 liter industrial gases . Empty containers can be stacked up to 3 levels. It’s made made of S235JR steel and galvanized according to EN-ISO 1461 for long-term corrosion protection. All profiles, pipes and sheets were produced in laser cutting technology, which guarantees 100% repeatability and no sharp edges. ARG17 has been designed with safe and ergonomic operation and safety in gas transport in mind. The product is equipped with two holders for fastening belts, a hinged flap made of non-slip checkered sheet allowing for comfortable rolling in and out of the cylinder from the container. ARG17 is transported by forklifts lifting it from below. Special plates in the bottom of the basket protect the load from the impact of the forks. Gas cylinders rest on a solid steel grid made of 3 x 30mm and 2 x 10mm flat bars with a 33mm mesh. At the customer’s request, it is possible to laser burn the company logo.
